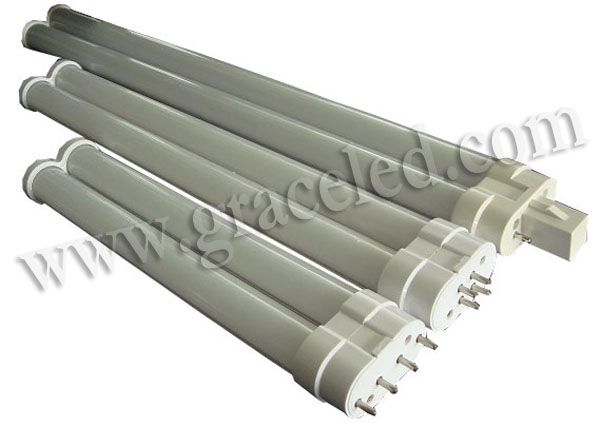

2G11 LED Lamp 4 pins in 2 lines 03

 Item No. : GL-2G11-10W03
Lampholder: 2G11
Certificates: Meet CE&RoHS standard
Lampshade: Frosted Cover
Lifespan: 50,000 hours
Warranty: 3 Years

Description

 Specification:



Luminous efficiency:90-100 LM/W



Input voltage: AC85-265V



Working frequency: 50-60HZ



Ambient temperature:  -20-50°C



Ambient humidity: more than 65%



Color rendering index: 75Ra



Power factor: more than 0.95



Material: aluminium alloy cooling fin +PC housing



Item No.

Power

Length (mm)

Lamp Holder

Luminous Flux (lm)

Input voltage

Replace Philips

G.W. (kg)

GL-2G11-8W03

8W

225x20

2G11

600-800

85-265VAC

24W

0.21

GL-2G11-10W03

10W

320x20

2G11

800-1000

85-265VAC

30W

0.25

GL-2G11-15W03

15W

410x20

2G11

1200-1500

85-265VAC

45W

0.33

GL-2G11-20W03

20W

535x20

2G11

1800-2100

85-265VAC

60W

0.42





Installation:



1.Standard installation,Connect directly to AC power, this is the most saving enrgy mode



2.Replacing installation,If there is a starter on the old fluorescent light fixture,remove the starter.



3.Remove electronic ballast, If there is no starter on the fluorescent light fixture,remove the electronic ballast.



Features:



1.Good heat dissipation: Using high thermal conductivity aluminum alloy as the main heat dissipation, good heat dissipation performance.



2.LED sources: Applied with the highest-level LED, low brightness attenuation and lifespan is over 50000hrs



3.Optional multi-input voltage: Wide-voltage design AC input voltage, adapt to different voltage range.



4.Environmental protection:No any harmful radiate spectrums such as UV or infrared ray included.



Application:



1. commercial lighting, supermarket, department store



2. hotel, restaurant, hall lighting decoration



3. factory,  school, university, hospital



4. living room, bedroom, kitchen, washroom
